Angry Miao Compact Touch R2 Mechanical Keyboard
Angry Miao Compact Touch R2 Mechanical Keyboard
- Glass touch panel with engraving
- 65% symmetrical layout
- Two-Stage Adjustable Leaf Spring Mount
- 5000mAh battery, 400+ hours of battery life / Wireless charging
- DIY RGB / Top-shelf hardware
- Tri-Mode 2.4G / Bluetooth / wired
- Icy Silver Pro switches in Bundle
Couldn't load pickup availability
Don’t miss out on this limited-time advantage crafted for you
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Less Caps,
More symmetry
AM Compact Touch R2 uses a touch panel to replace the arrow keys, allowing for a more compact symmetrical layout that's perfect to show off your keycaps.
This, allowed us to combine the beauty of HHKB and the practicality of 65%, creating a typing experience that many users enjoy.
The touch panel replaces the four arrow keys, allowing you to operate the arrow keys without moving your wrist. With a simple swipe of your thumb, you can take advantage of all the functions physical arrow keys provide, including long press and key combos.
Glass touch panel with engraving
We have upgraded the touch panel from acrylic to glass material. This not only improves sensitivity and touch accuracy, but also minimizes scratches. Say hello to silky smooth arrow key swipes.
The Donut colorways comes with an engraved touch panel, adding a touch of fun to the symmetrical shape of the AM Compact Touch R2.
*The surface of the touch panel is made from real glass. Please make sure your fingers are dry and use the center of the touch panel for the best usage experience.

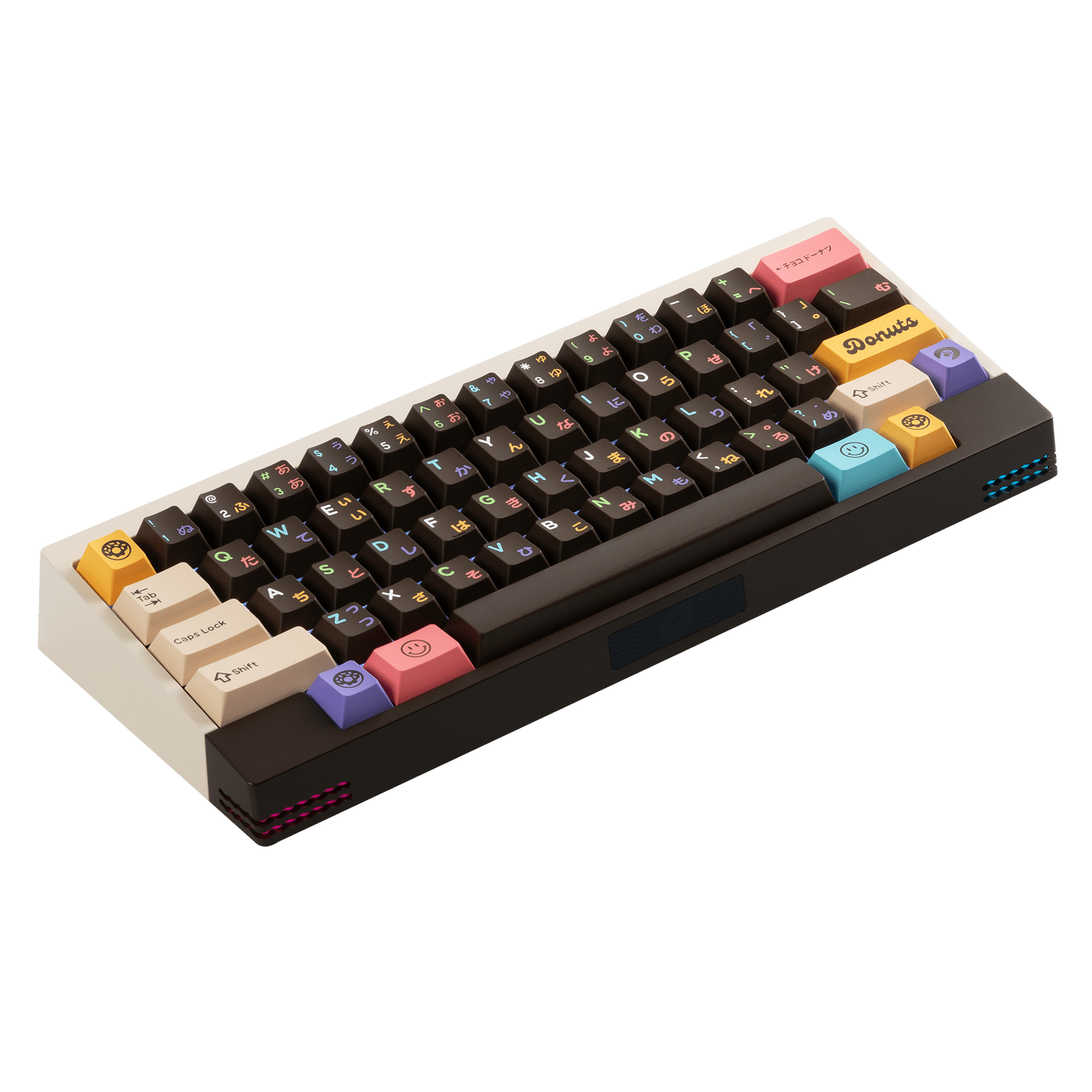

Angry Miao x Glove x DMK
Inspired by chocolate donuts
Tiramisu, black forrest cake and even M&M's. Everything becomes better when you add chocolate. And donuts are no exception. The unique color combination of AM Compact Touch R2 Donut gave us the opportunity to bring triple-shot ABS keycaps to our sweetest keyboard yet.
So, how does it taste?
We're not sure either. But we can guarantee that it will keep looking as fresh as the day you first got it.
*Bundle includes Domikey x Glove x Angry Miao Choco Donuts triple-shot ABS keycaps

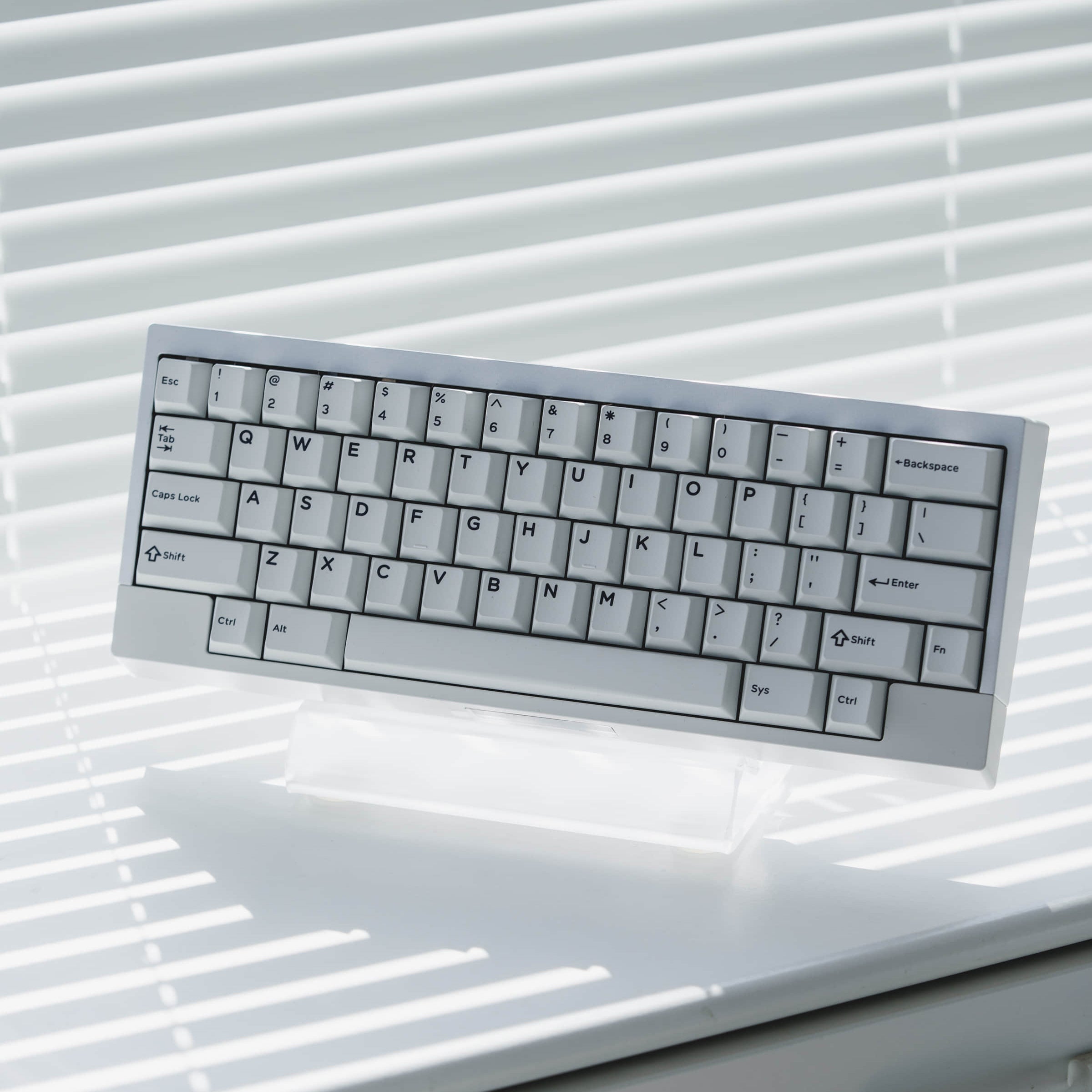

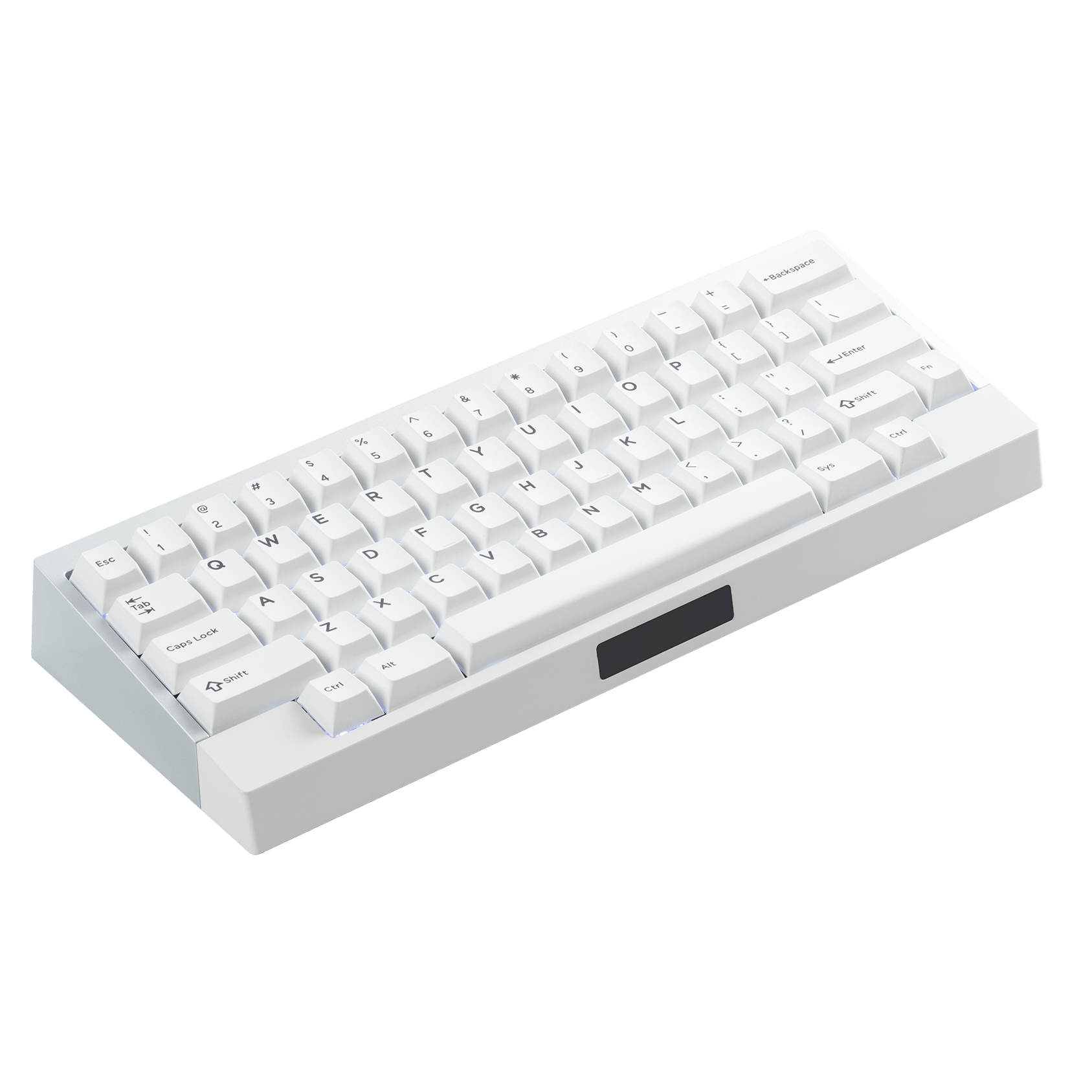

Snow Peak - silver/white
The front cover of Snow Peak has a white e-coat finish, to recreate that Apple vibe. And, we specially ordered keycaps from Domikey to match. With the touch panel, you also have a more elegant and convenient way to operate the arrow keys.
After sandblasting and anodizing the upper cover, it achieves the same aesthetic feel as you would get with a Mac. Seamlessly integrated into a minimalistic desktop environment.
With wireless charging support, AM Compact Touch R2 is the perfect keyboard for your minimalistic desktop. Of course, it has the thock and typing feel to match.If minimalism is not the look you're going for, DIY RGB is there to add your own style to your desk.
*Bundle includes Domikey BOW dye-sub keycaps
More thock and better typing feel
Two-Stage Adjustable Leaf Spring Mount
Two-stage adjustable leaf spring mount packed into a compact body. The AM Compact Touch R2 is equipped with upgraded switch pads and two different leaf spring materials (phosphorus copper and stainless steel), 8 different typing combos are possible without changing out your switches or plate.
Upgraded internals
Based on the almost impeccable internals of the AM Compact Touch R1, R2 takes it a step further with an additional PET film. The PET film has cut-outs for each individual key, allowing it to minimize noise while keeping typing feel top-notch.
Internals:
FR4 plate with cut-outs,
flexible yet consistent
1.2mm 4-layer hotswap PCB
with cut-outs and RGB
Poron foam to minimize the empty
space between the plate and PCB
Pre-attached custom PCB
foam with precise cut-outs
Ixpe 8 switch pad for
a more focused typing sound
Custom PORON adjustment pad
to find your perfect typing combo
PET film for a purer typing sound
PORON bottom pad to reducehollow
sound and increase cushioning
Icy Silver Pro switches in Bundle
The switches included in the Bundle have been upgraded Icy Silver Pro for AM Compact Touch R2. Co-created with Tango, these switches stand out with their excellent feel/sound/RGB combo. When matched with our Two-Stage Adjustable Leaf Spring Mount and upgraded internals, typing becomes a visual and tactile enjoyment.
Tightly packed
Although the compact shape of the AM Compact Touch R2 severly limits the internal space, we haven't made any concesions on its hardware. Our designers and engineers have carefully considered its hardware design, and used the most optimal setup to make sure all our ideas could be implemented into the product. Thanks to their efforts, AM Compact Touch R2 reaches the same high standards as any other Angry Miao keyboard.
Tri-Mode 2.4G / Bluetooth / wired
AM Compact Touch R2 does not have a dedicated switch for switching between Bluetooth and wired. Instead, it automatically switches by simply plugging and unplugging it. 2.4G wireless is also supported, providing you with a faster and more stable connection.
DIY RGB
In-switch and blocker RGB lighting with support for DIY RGB lighting effects.
An Epic Core Inside
A powerful ARM architecture MCU equipped with 256KB Flash will provide more flexibility for developers. The polling rate is 1000 Hz on 2.4GHz and wired modes right out of the box, which makes the latency hardly noticeable even in competitive games.
Interior Acoustic Foam
Elevate your typing with K3 Max featuring advanced IXPE acoustic foam for silent keystrokes and enhanced comfort, coupled with resilient latex foam for superior key switch support, responsiveness, and durability. Redefining the standard for a quiet, comfortable, and responsive typing experience.
Hot-Swappable (Optional)
We all have our unique typing preferences, that’s why we are offering hot-swappable option on the K3 Max, so you can easily hot-swap every low-profile Gateron mechanical switch in a few seconds to customize the typing experience without soldering.
*The K3 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.
Battery life and wireless charging
AM Compact Touch R2 is equipped with a 5000mAh battery. When connected in 2.4G mode with RGB turned off, the battery life reaches approximately 400 hours. Wirelessly charge your AM Compact Touch R2 using CYBERMAT to forget about recharging your keyboard all toghether.
Low-Profile Double-shot PBT Keycaps
Designed for premium type feeling, the K3 Max comes with our unique double-shot PBT keycaps that made of durable non-backlight shine through PBT material with excellent oil resistance for long-term use.
Redesigned Stabilizers
We’ve redesigned the stabilizers to make it stay on the level the same way as the switch while making sure it still delivers reliability and less wobble on the big keys like the space bar, left Shift, backspace, and Enter key.
RGB Backlights
Comes with more than 22 types of RGB backlight settings (as well as a static white backlight option), and 14 types of backlight settings on the White Backlight version. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.
Ergonomic Support
Three levels of adjustable typing angle aim to provide long-lasting ergonomic wrist support.
What's in the box?
What's in the box?
Frequently bought together (Add-on)
ANY KEYBOARD + ADD-ON
Pay shipping fee for keyboard only. Free shipping for the add-on (Excluding the Carrying Case and Mouse). Terms here.
Select the matching variant for your product.
SPECIFICATION
Number of Keys: 84 (75%)
Switches: Gateron low-profile mechanical
Switch Face: North-facing
Number of Multimedia Keys: 12
Frame Material: ABS+Aluminum frame
Keycap Material: Low-profile double-shot PBT
Layout: ANSI
Polling Rate (2.4Ghz and Wired Mode): 1000Hz
Polling Rate (BT Mode): 90Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes
*The K3 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.
CONNECTIVITY AND POWER
Backlit: 22 types of RGB backlight options plus endless possibilities
Battery: 1550 mAh rechargeable li-polymer battery
Wireless Working Time (Backlit off): Up to 78 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB): Up to 40 hours (Lowest brightness)
Connection: 2.4 GHz / Bluetooth / Type-C wired
Bluetooth version: 5.1
Bluetooth Device Name: Keychron K3 Max
Compatible System: macOS / Windows / Linux
PHYSICAL UNIT
Dimension: 306 x 116 mm (12.04 x 4.56")
Weight: 525 g / 1.16 lbs
Height without keycap (front): 11 mm (0.43")
Height without keycap (rear): 15 mm (0.59")
Height incl. keycap (front): 17 mm (0.66")
Height incl. keycap (rear): 22 mm (0.86")
Typing Angle: 2.5º, 4.2º and 6.5º
MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Operating Environment: -10 to 50℃
Learn more about the Keychron K3 Max such as the shortcuts, VIA tutorial, factory reset, and more in the FAQ section.
